The Q-Lume Utility Jar

Tough Fixture.
Easy Installation.
Q-Lume Utility Jar
The Q-Lume Utility Jar

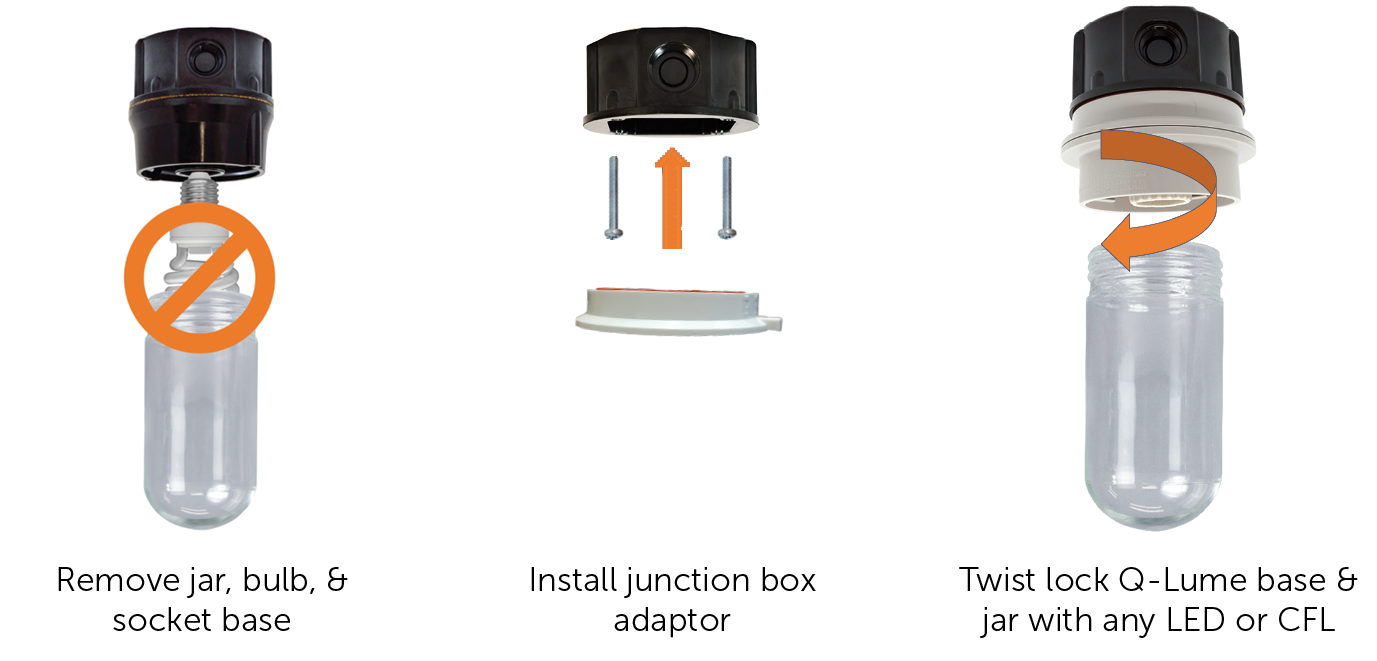

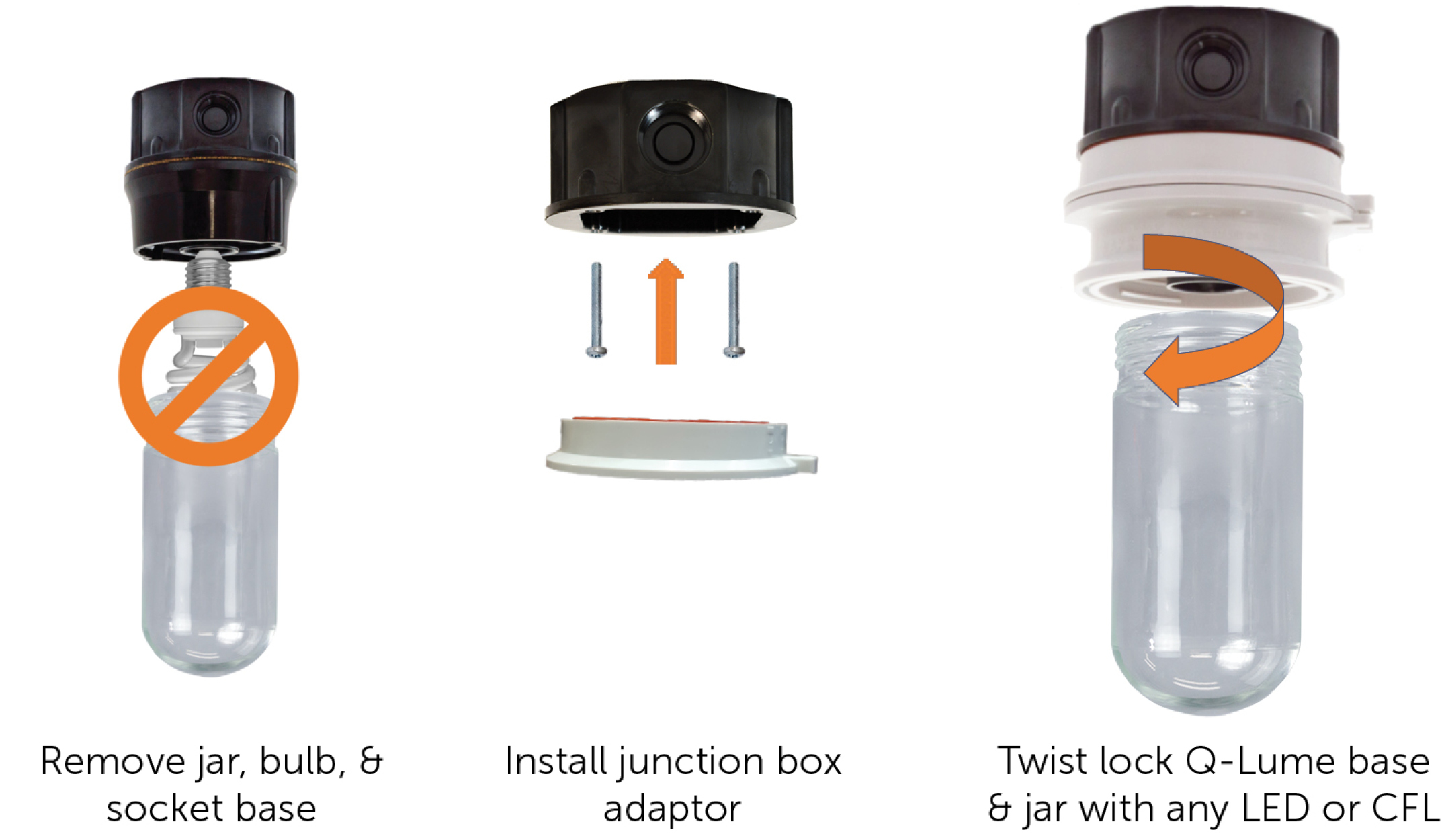

Quickly & easily install the Q-Lume onto most junction boxes
The economical Q-Lume Utility Jar Fixture installs quickly & easily onto most junction boxes using our exclusive junction box adapter.  It includes a new superior watertight seal against the existing junction box & provides our FicientLock watertight fitting to quickly lock in our fixture assembly. Simply twist, lock, & it's dust proof & watertight! The Q-Lume fixture is made of a virtually indestructible high tech polymer, has a replaceable socket & includes captive high-temp silicone gaskets. Intended for use indoors & out, ETL listed for wet locations, & designed specifically for use with today's energy saving screw in LED or CFL lamps.








Benefits
  • Captive, pre-installed gaskets
  • No assembly screws needed
  • FicientLock system: twist, lock, watertight
  • Compatible with Q-Box or universal luminaire available
  • ETL Listed for wet or damp locations, U.S. and Canada
  • Nickel-plated socket for increased durability
  • Replaceable socket; no need to replace the entire fixture
  • Inboard and outboard mounting options
  • Designed for use with A19 and A21 bulbs
  • Patented. Made in America.
Environmental and Safety
  • Suitable for wet or damp locations
  • ETL Listed, Certified to UL Std. 1598, CAN/CSA 22.2 #250.0
  • For use only on walls, ceilings or concrete floors
  • For use only with non-metallic conduit
Environmental Icons
Product Information & Part Numbers
Material
  • Non-metallic, high-performance polycarbonate and high temp-rated gasket
Wattage
  • 40W Max, CFL or LED; 100W Max Incandescent
Socket
  • Medium base, Edison E26, screw type, nickel plated with ground wire
Packaging
  • 12 per box
Mounting
  • Ceiling, wall or surface mount
  • Ships with pre-installed 9-15 x 2" shield-coated hex screw with washer or use outboard mounting locations
Q-Series Products

Part Numbers (sold separately)

Q-Lume Fixture – Glass Jar QL300J
(installation screws included)
Q-Lume Fixture – No Glass Jar QL303
(installation screws included)
