Q-Box

Installation just got a whole lot simpler and faster with Q-Box—a durable junction box that is UL Certified for wet locations. FicientLock technology™ allows you to twist and lock the cover to make it watertight. An optional embedded center screw cuts installation time in half. And the Q-Box is designed with extra volume to make it easy for large hands to maneuver.


FAST AND FLEXIBLE

  • 19.5 cubic inch volume means more space to maneuver

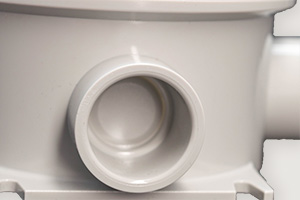

  • Four ¾” Non Metallic Conduit Hubs; two left open for long runs

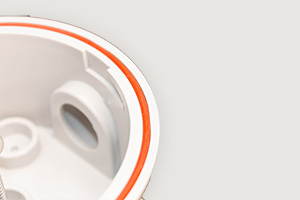

  • Pre-installed, captive gasket saves time
  • No screws needed for the fastest assembly
  • ETL Listed, Certified to UL 5A, CAN/CSA 22.2 #62.1
  • Suitable for wet locations in US and Canada
  • FicientLock™ technology makes installation fast and simple

EASY INSTALLATION

Q-Cover Q-Hub Q-Box

FicientLock Technolgy


AT THE CENTER OF EFFICIENCY

The Q-Box is designed for quick and easy installation. Use FicientLock technology to simply twist and lock the cover onto the box and it’s UL Certified for wet locations. The embedded gasket eliminates the need for additional screws, making the Q-Box 4X faster to install than the competition.

SPEC SHEET INSTRUCTION MANUAL

ENVIRONMENTAL AND SAFETY RATINGS

Suitable for wet locations.

ETL Listed, Certificed to UL 5A, CAN/CSA 22.2 #62.1

Product Information

Material

Non-metallic, high performance polycarbonate and high temp rated gasket

Dimensions/Capacity

2 1/8” Height
4 1/2” diameter
19.5 cubic inches

Hub Size

Accepts 3/4” O.D.
PVC, non-metallic conduit

Packaging

15 per box or
96 per box

Mounting

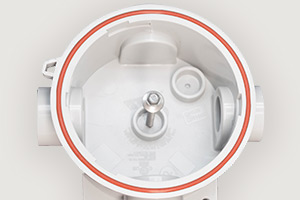

Ceiling, wall, or surface mount. Ships with a pre-installed 9-15 x 2” shield coated Hex screw with washer or use outboard mounting locations

Part Numbers (sold separately)

Q-Hub

QH1000S, QH1000
Pre-installed screw included

Q-Cover

QC100
