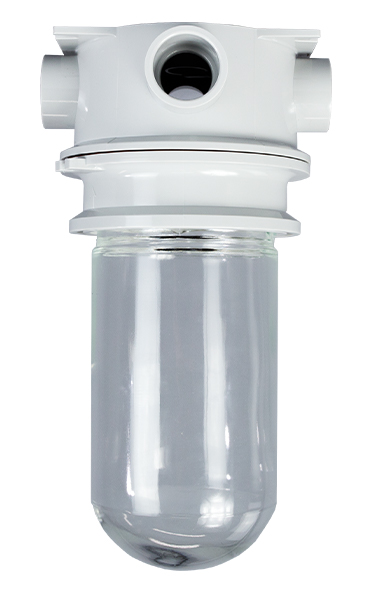

Q-Lume

If current utility jar lighting is keeping you in the dark, it’s time to meet Q-Lume—a durable utility jar light fixture that’s easy to maintain and simple to install. With no screws needed for assembly and no gasket to handle thanks to Q-Box compatibility, the Q-Lume helps you save on installation costs.


SAVE ENERGY AND TIME:

  • For use with LED or CFL lamps up to 40W
  • No screws needed for assembly
  • Nickel-plated socket lasts longer
  • ETL wet location listed for US and Canada
  • FicientLock™ technology compatible with Q-Box for quick install

EASY INSTALLATION

Q-Lume Q-Hub Glass Globe Q-Lume Fixture


SIMPLY A SMARTER JAR FIXTURE

The Q-Lume is an extremely durable utility jar light fixture equipped with Energyficient’s exclusive FicientLock system for quick assembly onto the Q-Hub. Installation is easy and requires no assembly screws and no gasket. Simply twist and lock and it’s watertight.

SPEC SHEET INSTRUCTION MANUAL

ENVIRONMENTAL AND SAFETY RATINGS

Suitable for wet locations.

ETL Listed, Certified to UL Std. 1598, CAN/CSA 22.2 #250.0

Product Information

Material

Non-metallic, high performance polycarbonate and high temp rated gasket

Dimensions/Capacity

9 5/8” height
5 1/16” in diameter

Wattage

40W Max
CFL or LED

Hub Size

Accepts 3/4” O.D. PVC, non-metallic conduit

Hubs

2 Open 3/4” hubs and 2 knockout type at 90°

Socket

Medium screw type E26, nickel plated, ground wire

Packaging

12 per box

Mounting

Ceiling, wall, or surface mount. Ships with a 9-15 x 2” shield coated Hex screw with washer or use outboard mounting locations

Part Numbers (sold separately)

Q-Lume Fixture—Glass

QL100JS
Pre-installed screw included

QL100J
Pre-installed screw not included

Q-Lume Fixture—Plastic

QL250JS
Pre-installed screw included

QL250J
Pre-installed screw not included

Q-Lume
Fixture—No Globe

QL103
